3-Stage Air Filtration System for Shooting Ranges
Effective air filtration is an important part of a professional shooting range. Firearm use can produce airborne particulates, including lead-containing particles, smoke, combustion byproducts, dust, and unburned powder.
Mobile Range Technologies uses a 3-stage air filtration system with a 2-inch or 4-inch pre-filter, bag filter, and HEPA filter. Each stage captures different particle sizes, reducing the load on downstream filters and supporting consistent airflow. Call or contact us online to learn more about our standard range air filtration system.
940-286-5251How Our 3-Stage Air Filtration System Works

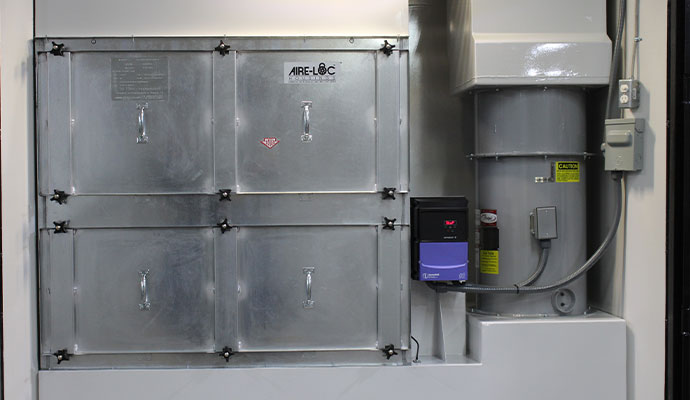

The filtration system uses three stages to progressively capture airborne particles. Each filter removes a different level of particulate, reducing the load on the next stage and helping maintain consistent airflow through the system.

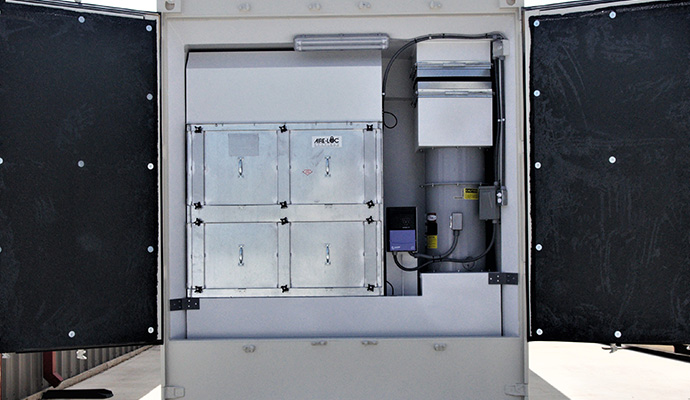

First Stage: 2-Inch or 4-Inch Pre-Filter
The pre-filter captures larger particles such as dust, debris, lint, and unburned powder before they reach the downstream filters. Typically rated MERV 7–8, it is inexpensive to replace and helps reduce early loading on the bag and HEPA filters.
Second Stage: Bag Filter
The bag filter captures finer particulate that passes through the pre-filter. Typically rated MERV 11–15, its large surface area provides high dust-holding capacity while reducing the particle load reaching the HEPA filter. This supports consistent airflow and static pressure.
Third Stage: HEPA Filter
The HEPA filter provides the final stage of filtration, capturing up to 99.99% of particles at 0.3–3 microns. It targets ultra-fine particulate, including particles associated with lead, smoke, and other contaminants generated during range use.
Why Use Pre-Filters and Bag Filters Before a HEPA Filter?
HEPA filters provide high-efficiency final filtration, but they are more expensive to replace. Pre-filters and bag filters capture larger and finer particulate before it reaches the HEPA filter, reducing the particle load. Based on the supplied system information, this pre-filtration can extend HEPA filter life by 3–5 times or more, depending on operating conditions and particle loading. This staged approach can provide:
- Longer HEPA filter service life
- Lower filter replacement costs
- Reduced downstream filter loading
- More consistent airflow
- Better static pressure control
Airflow Monitoring With Magnehelic Gauges
Effective filtration depends on proper airflow through the range. Every Mobile Range Technologies range includes Magnehelic® differential pressure gauges that give staff and Range Safety Officers an at-a-glance reading of pressure conditions across the ventilation and filtration system. The mechanical gauges operate without electricity or software, providing a simple way to monitor airflow during daily range use. Staff can use the gauges to:
- Check airflow conditions before and during live fire
- Monitor changes in filter loading
- Identify changes in ventilation performance
- Support routine range checks
Designed for Professional Shooting Range Operations
Shooting ranges can generate airborne particulate during repeated firearm use, making effective filtration an important part of range design. Our 3-stage system progressively removes particulate while the ventilation system directs air through the filtration stages. It is designed for shooting range operations serving:
Part of a Complete Range Air and Containment System
Air filtration is one part of a complete shooting range system. Mobile Range Technologies combines controlled airflow with standard features for ballistic containment, sound management, and shooting-area conditions. Together, these systems support a controlled range environment designed for daily range operation.
Call Us Today to Plan Your Shooting Range
Mobile Range Technologies provides 3-stage air filtration systems as part of our mobile, modular, and panelized shooting range designs. Each filtration stage has a specific role in managing airborne particulates and supporting consistent airflow.
If you are planning a professional shooting range, contact us today to discuss your project and explore our standard range features.
940-286-52513-Stage Air Filtration System Frequently Asked Questions (FAQs)
What are the three stages of the filtration system?
Why is a pre-filter used before the HEPA filter?
What does the bag filter do?
How does the Magnehelic gauge work with the filtration system?
Can the filtration system help extend HEPA filter life?
