Job completed for Gunshop

The owner of a local gun store wanted to add an indoor shooting range to increase revenue, attract more customers, and create a destination where shooters could test firearms, train, and purchase accessories. He needed a turnkey solution that could be installed quickly without the cost and complexity of constructing a traditional brick-and-mortar range.

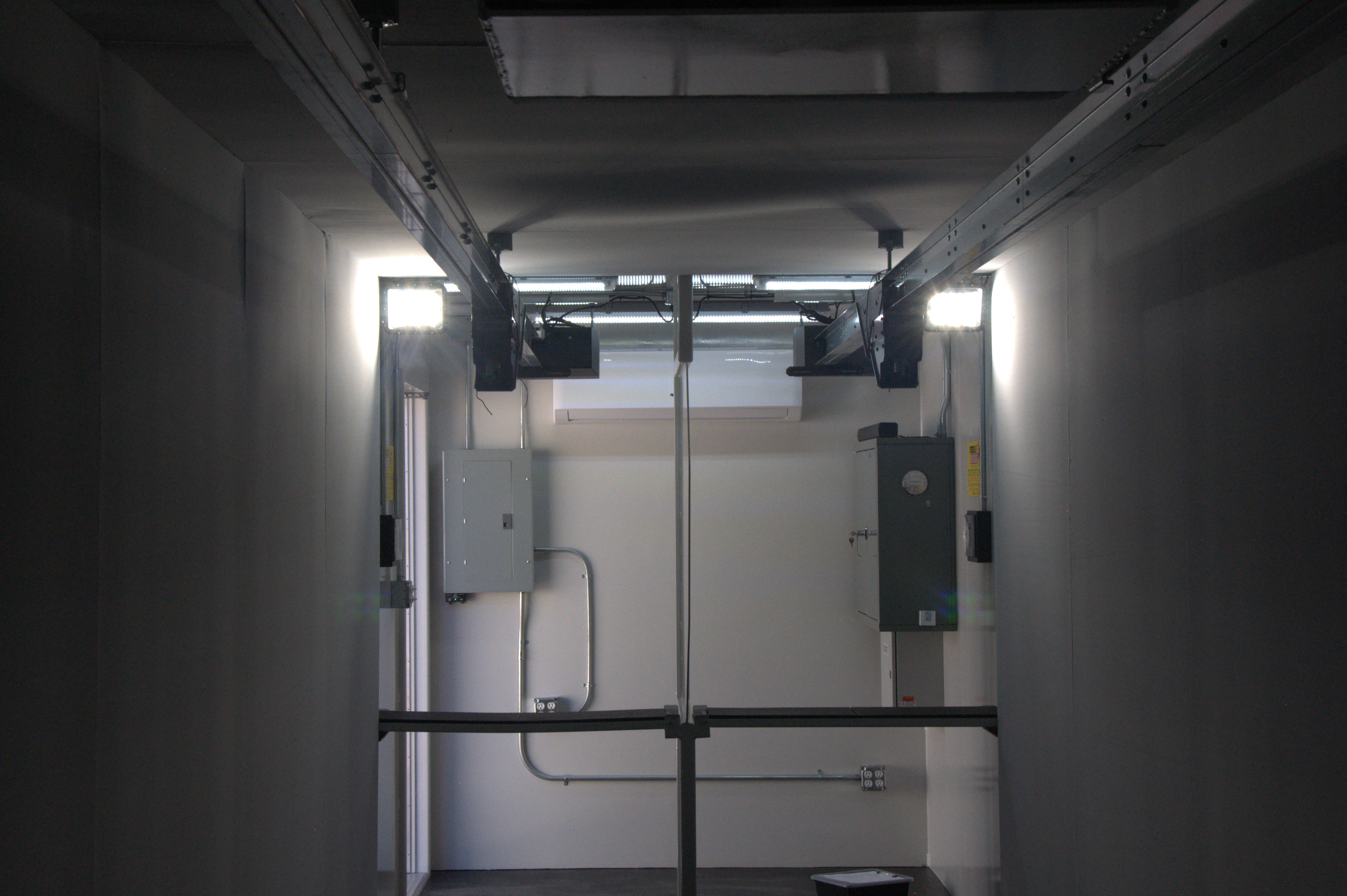

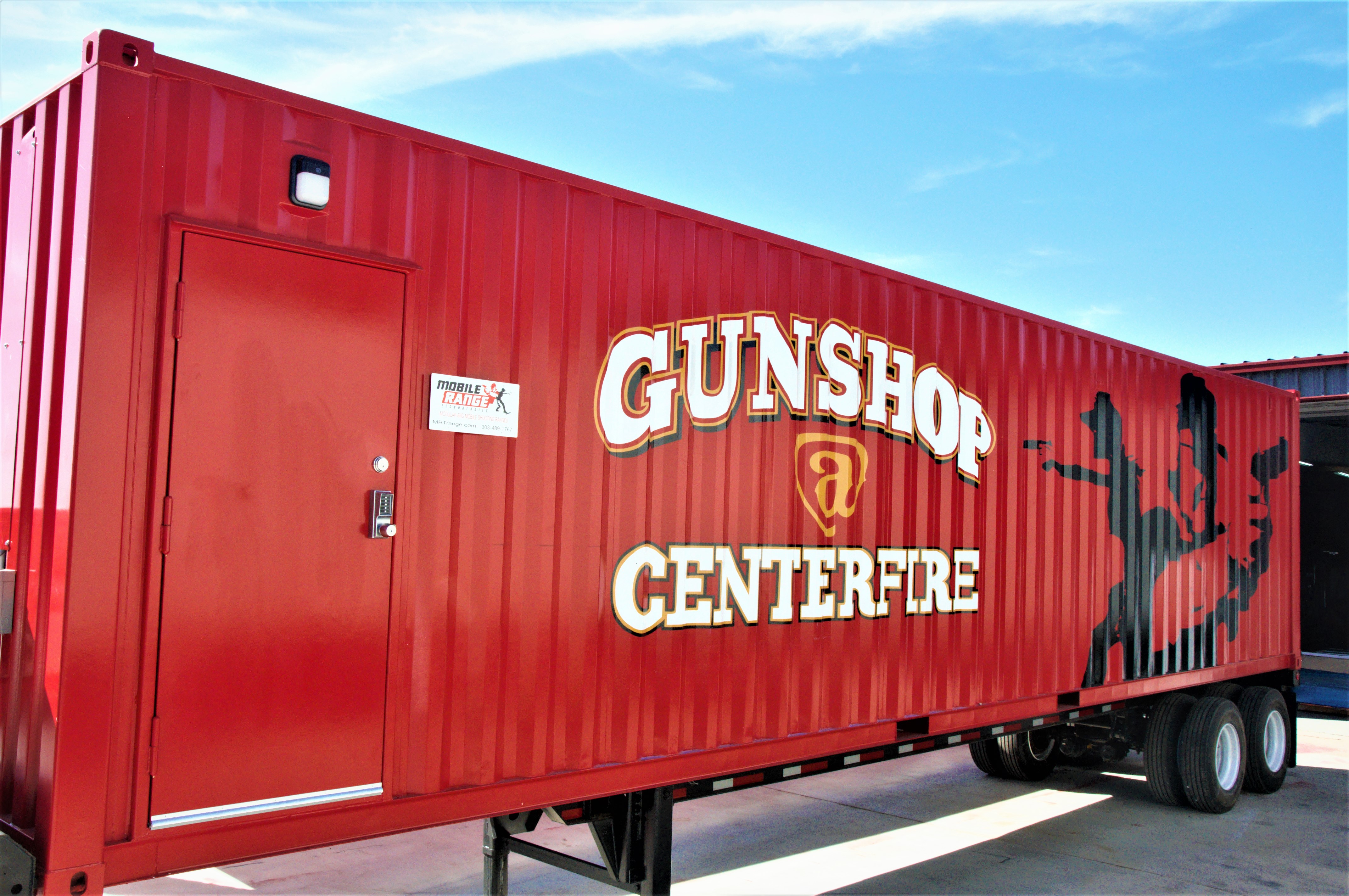

We designed and delivered a custom 40' Groundhog indoor shooting range equipped with a state-of-the-art firearms simulator and full custom exterior graphics. Built inside a 40-foot shipping container, the unit provided a turnkey, climate-controlled training environment that supported both live-fire shooting and simulator-based instruction.

Key Features and Specifications

• One climate-controlled shooting lane Integrated firearms simulator for virtual training and scenario-based exercises
• 40-foot shipping container construction
• Full custom exterior graphics and branding
• 360° ballistic steel envelope (7.62x51mm 149 grain, M80 FMJ tested)
• Acoustic sound foam reducing exterior sound to approximately 76 dB

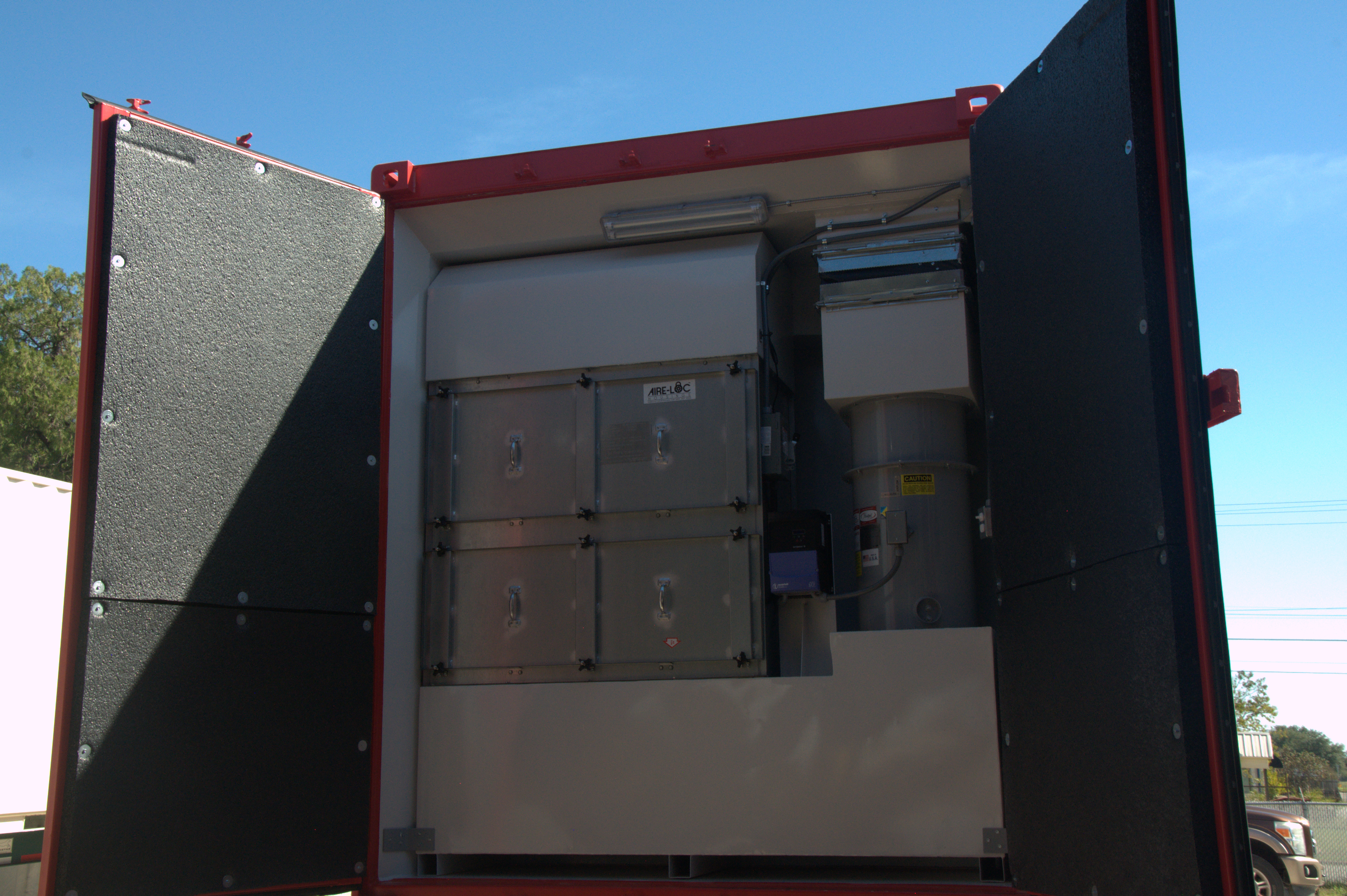

• Industry Leading particle filtration system with 99.99% efficiency at 0.3 microns and fully enclosed design

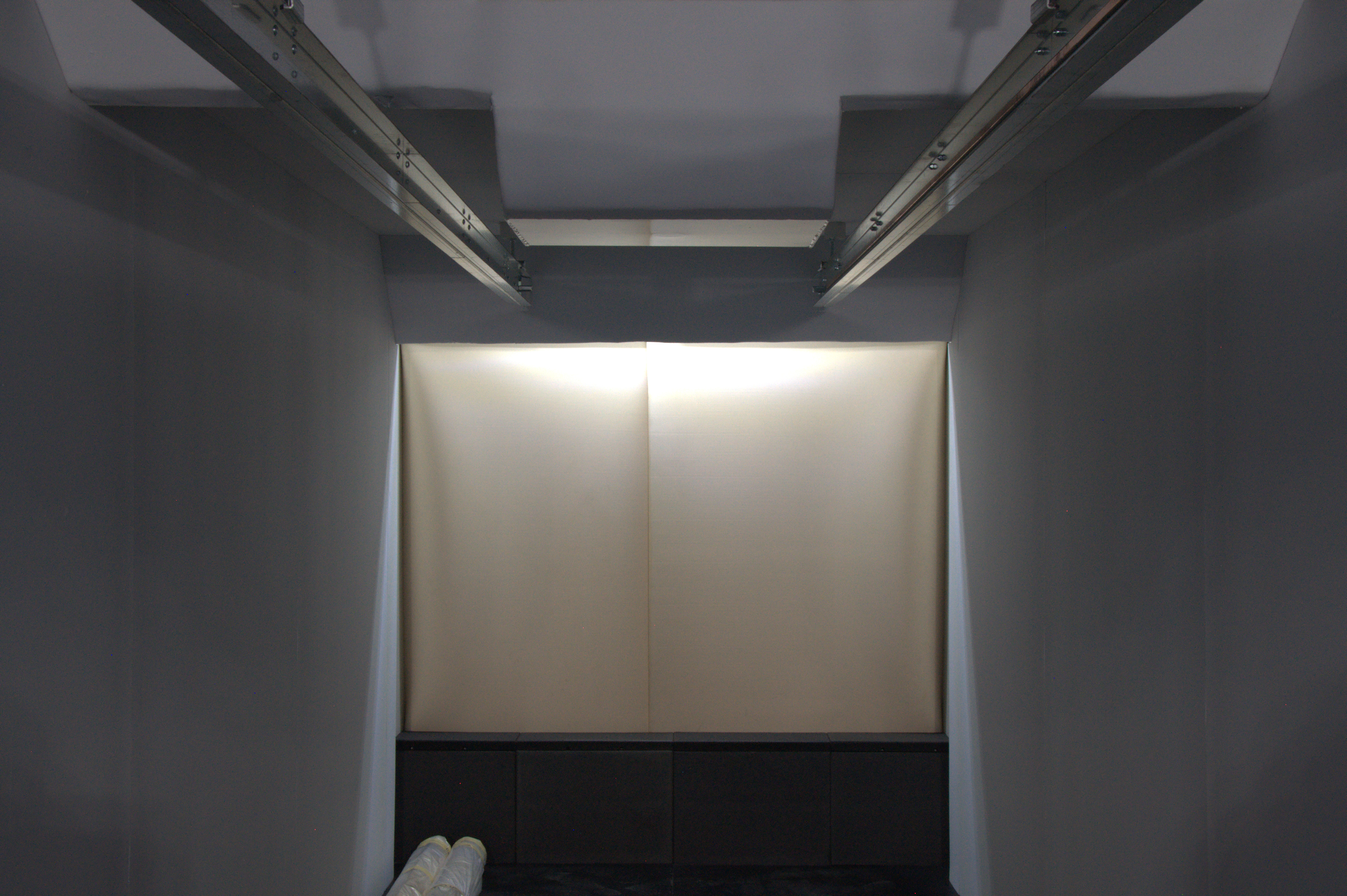

• Sloped rubber berm bullet trap
• Caliber Target Retrieval Systems
• Electronic locking system
• Mini split heating and air conditioning
• Fully insulated structure Sealed rubber flooring
• LED lighting
• Single Phase 50 Amp 208/220 RV-style power connection

The result was a versatile training center that generated revenue through lane rentals, simulator sessions, memberships, classes, and increased retail traffic, while giving customers a unique and engaging experience that set the gun store apart from the competition.
